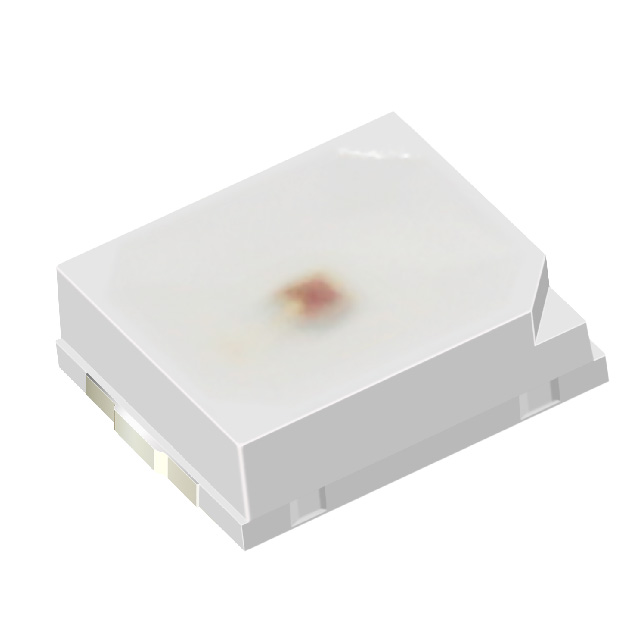

Product name：2016 Red

Product features：

· Red/ Super Red Color 2016 Package

· View angle at 50% Iv of 120°

· Corrosion Robustness Excellent corrosion robustness

· AEC-Q102 Qualified

· Suitable for SMT process

Product details

Series		Model	Power	Forward Current Typ.	Luminous Flux Typ.	Wavlength Typ.	Forward Voltage Typ.	Size
2016		AH1-AA	0.2 W	60 mA	13 lm	616 nm	2.3 V	2.20╳1.60×0.62 mm
		AH1-AS	0.2 W	60 mA	7 lm	632 nm	2.3 V	2.20╳1.60×0.62 mm
		AH2-AA	0.5 W	150 mA	32 lm	616 nm	2.3 V	2.20╳1.60×0.62 mm
		AH2-AS	0.5 W	150 mA	19 lm	632 nm	2.3 V	2.20╳1.60×0.62 mm

Datasheets

SMD 2016 LED AH1-AA Datasheet v1.2.pdf

SMD 2016 LED AH1-AS Datasheet v1.3.pdf

SMD 2016 LED AH2-AA Datasheet v1.2.pdf

SMD 2016 LED AH2-AS Datasheet v1.0.pdf

For information on the types in question please contact our Sales Organization.
